Applicabilities
With high crushing ratio,simple and appropriate structure and high crushing efficiency, these crushers maintain steady operations and are easy to maintain. It is expedient to replace the parts. Widely applied in sectors of building materials,mineral processing, chemical engineering and electric power,these crushers are mainly used for crushing materials with medium degree of hardness.
Working Principle

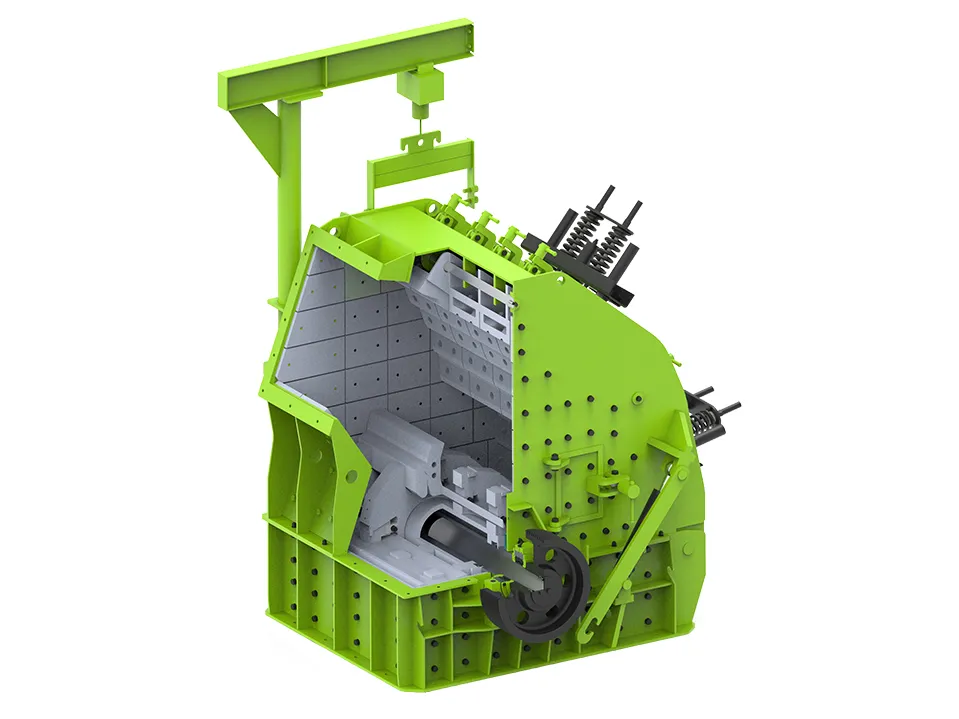

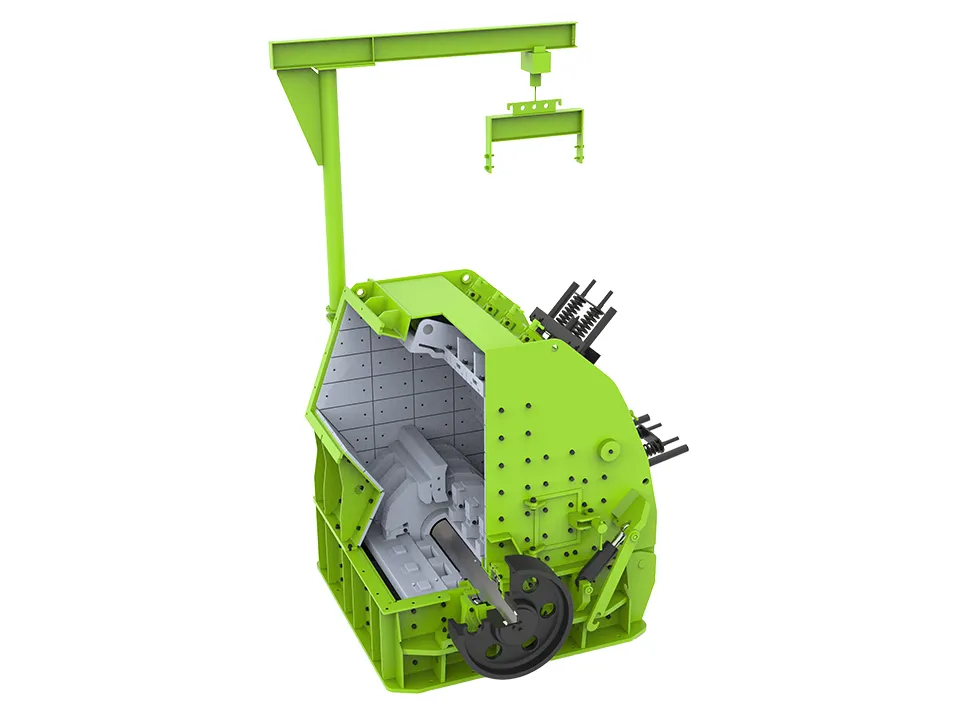

The impact crushers crush materials with high-speed impact. When materials enter the acting zone of the plate hammer through the feed port, they will be subject to high-speed impact of the hammer and crushed for the first time. The powerful impact force casts the materials to the impact plate, and the materials are crushed again. The materials sprung back from the impact plate fall upon the acting zone of the plate hammer. Then the above steps are repeated until the particle size of the crushed materials is smaller than the diameter of the discharge port. The crushed materials are subsequently discharged through the discharge port dependent upon their dead weight by adjusting the spacing between the impact bracket and the rotor, the particle size and shape of the discharged materials may be changed.
Product Features
High Crushing Ratio
With high crushing ratio, simple and appropriate structure and high crushing efficiency, these crushers maintain steady operations and are easy to maintain.
It is expedient to replace the parts. Widely applied in sectors of building materials,mineral processing, chemical engineering and electric power, these crushers are mainly used for crushing materials with medium degree of hardness and britle materials.
Higher Production Efficiency
The optimized crushing chamber accepts materials with bigger feed particle size. The optimized liner and specific rotor greatly increase production efficiency under different conditions.
Durable And Reliable
The plate hammer, impact liner and wear parts inside the chamber are made of high chromium and manganese materials, which make wear parts (e.g.plate hammer and impact hammer)more durable and mechanical parts of the crusher (including spindie and bearings)more reliable.
Convenient Overhaul
The crusher may be configured for hydraulic uncovering,to make it convenient to disassemble and replace wear parts.
