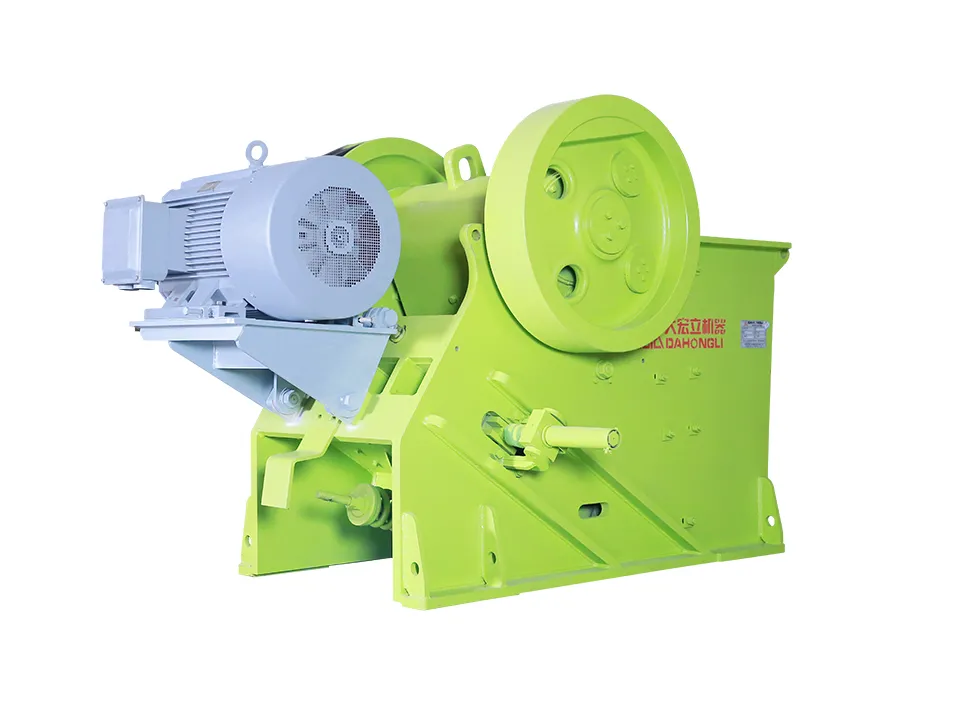

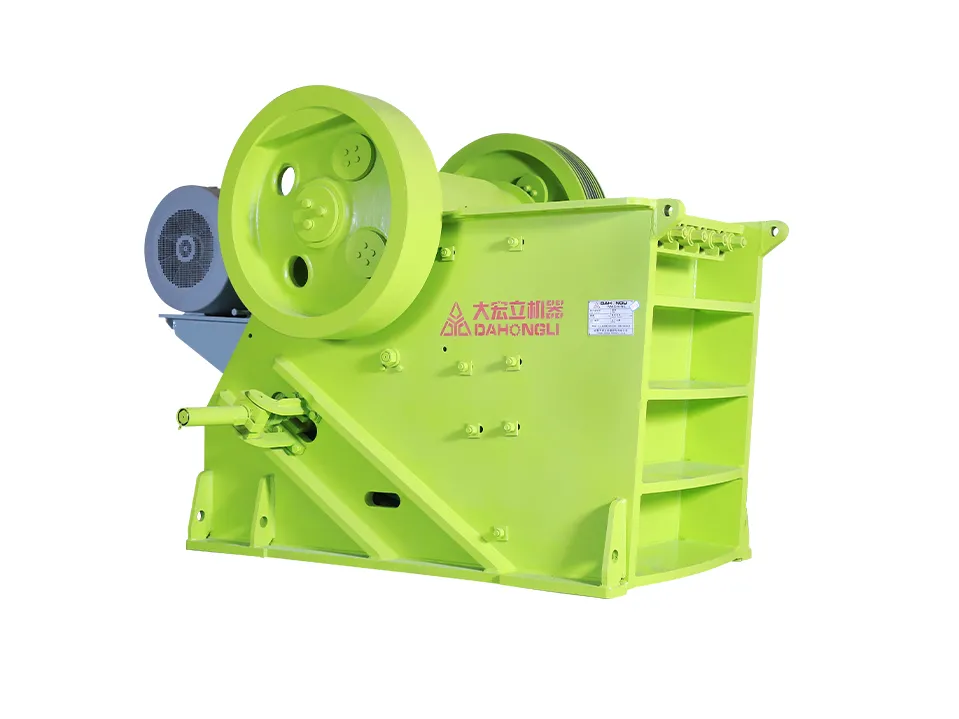

Product Description
Applicabilities
PEV series jaw crushers are suitable for primary, secondary and fine crushing of various ores or rocks with a compressive strength not exceeding 2ooMPa. They are applicable to industries of mines, sandstones, cement, road construction,metallurgy and chemical engineering.
As a professional Jaw Crusher manufacturer, Dahongli provides reliable PEV Series Jaw Crushers with optimized crushing chambers, durable components and flexible adjustment systems to deliver high crushing efficiency, stable operation and long service life.
Working Principle

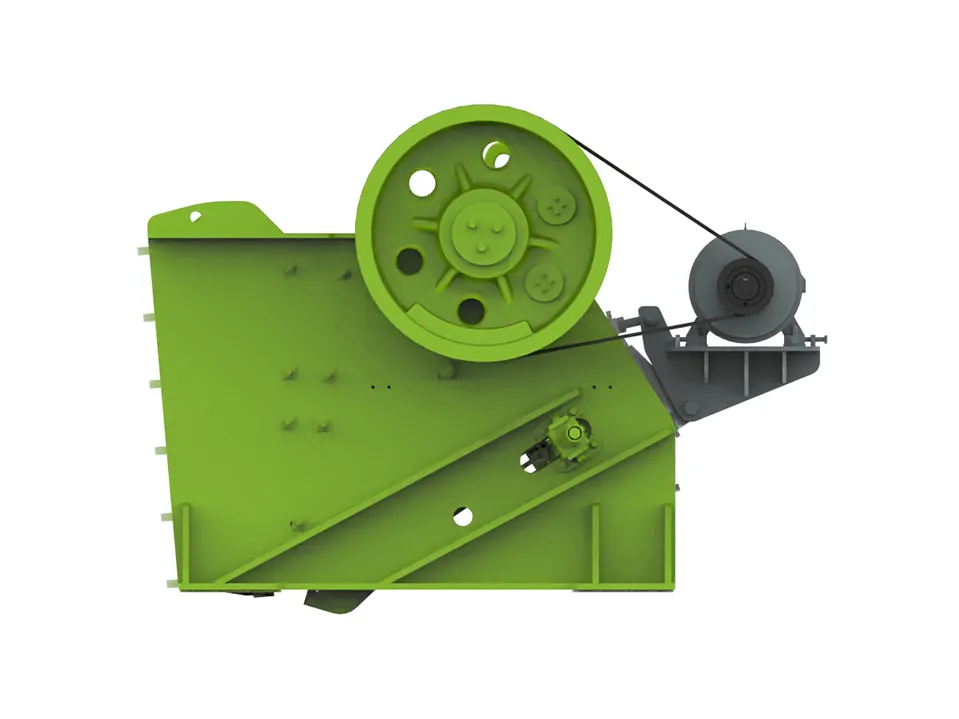

The motor drives the mainframe pulley wheel through the V-shaped belt and the mainframe pulley wheel drives theeccentric shaft so that the jaw will periodically move up and down, back and forth in a reciprocating manner along the predetermined regular motion trajectories.
Then, the materials inside the crushing chamber are crushed, and discharged through the discharge port dependent upon their dead weight.
PEV Series Jaw Crusher Machine Features
Modular Non-Welded Structure
Big jaw crushers with a dimension of 1,200x1,600 or bigger dimension, with modular and non-welded structures, are more sturdy and durable. They are easy to transport and install.
Finite Element Analysis
The whole design process from part modeling to structural analysis is controlled effectively.
Optimized Crushing Chamber +Stroke
Increase yield of crushing machines and improve granular shapes of products.
Wedge Adjustment
Wedge adjustment can be made during operation or shutdown of the crushers. Users can make mechanical or hydraulic adjustment according to their needs. Hydraulic adjustment is highly automatic. The users can adjust the discharge port and pre-tighten the jaw as long as they press corresponding button.
Four Bearings With The Same Specification
Bigger than bearings of other crushers with the same specification, these bearings have longer service life. They reduce categories of parts and prolong replacement cycle.
High-Quality Parts
The application of high-quality alloy steel castings and hot rolled steel plates increases stability and prolongs service life.

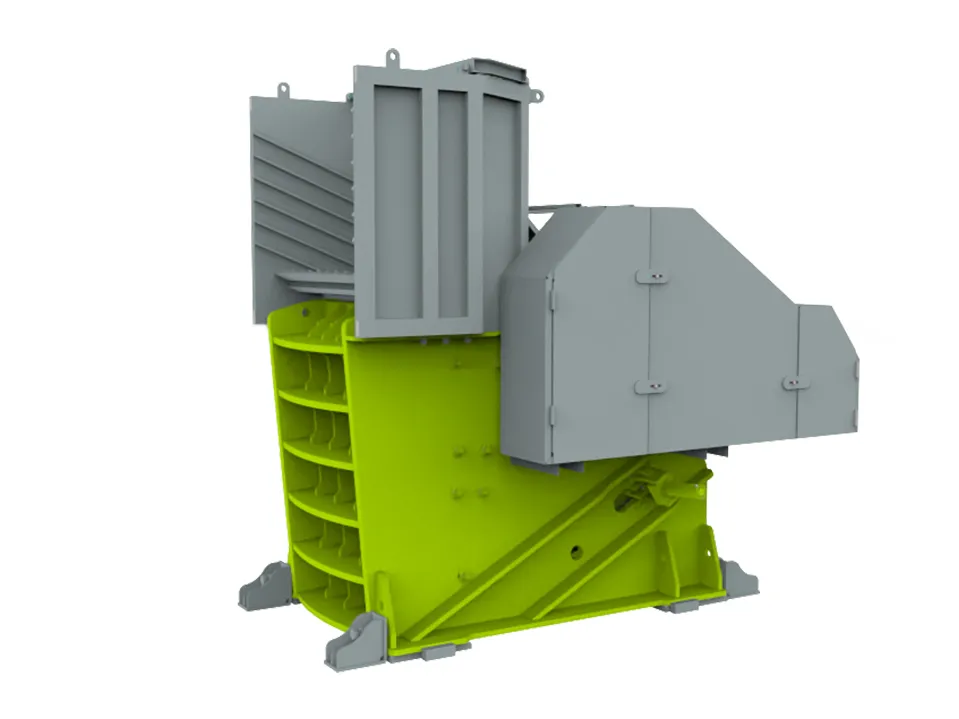

Multiple Optional Parts
Feed hopper, safety hood of flywheel belt pulley, automatic lubrication system and hydraulic adjustment system improve operation efficiency, increase operation safety and lower production costs.
Technical Specifications
| Model | PEV500*750 | PEV600*900 | PEV750*1060 | PEV950*1250 | PEV1200*1400 | PEV1200*1600 | PEV1500*2000 |
| Max Feed Particle Size (mm) | 400 | 480 | 630 | 760 | 960 | 960 | 1200 |
| Mater Power (kw) | 55-75 | 75-90 | 110-132 | 160 | 200-250 | 250 | 400 |
Mainframe Weight (kg)
(excluding motor) | 8920 | 12090 | 23030 | 36630 | 53600 | 73020 | 153950 |
Particle Size
(mm) | Tight-side
Discharge Pot
(mm) | Treatment Capacity(t/h) |
| 0-60 | 40 | 60-85 | ／ | ／ | ／ | ／ | ／ | ／ |
| 0-75 | 50 | 75-105 | ／ | ／ | ／ | ／ | ／ | ／ |
| 0-90 | 60 | 90-125 | 120-155 | ／ | ／ | ／ | ／ | ／ |
| 0-105 | 70 | 105-155 | 145-180 | 175-215 | ／ | ／ | ／ | ／ |
| 0-120 | 80 | 130-180 | 160-215 | 190-245 | ／ | ／ | ／ | ／ |
| 0-135 | 90 | 155-210 | 180-250 | 200-270 | ／ | ／ | ／ | ／ |
| 0-150 | 100 | 170-230 | 210-285 | 230-315 | 320-430 | ／ | ／ | ／ |
| 0-185 | 125 | 190-260 | 280-380 | 305-415 | 410-550 | 420-570 | ／ | ／ |
| 0-225 | 150 | 300-415 | 360-485 | 390-525 | 500-680 | 520-705 | 600-810 | ／ |
| 0-260 | 175 | ／ | 420-595 | 470-640 | 565-820 | 630-850 | 720-975 | 920-1240 |
| 0-300 | 200 | ／ | ／ | 535-760 | 635-965 | 740-1000 | 810-1150 | 1025-1465 |
| 0-340 | 225 | ／ | ／ | ／ | 710-1115 | 830-1160 | 900-1330 | 1130-1700 |
| 0-375 | 250 | ／ | ／ | ／ | 780-1270 | 950-1320 | 990-1520 | 1250-1900 |
| 0-410 | 275 | ／ | ／ | ／ | ／ | ／ | 1080-1710 | 1365-2200 |
| 0-450 | 300 | ／ | ／ | ／ | ／ | ／ | 1175-1910 | 1470-2465 |
FAQ About PEV Series Jaw Crusher
1. What materials can PEV Series Jaw Crusher process?
PEV Series Jaw Crusher is designed for crushing various ores and rocks with compressive strength up to 200 MPa. It is widely used for processing granite, basalt, limestone, river pebble and other hard materials.
As a reliable Jaw Crusher manufacturer, Dahongli provides jaw crushing equipment for mining, quarrying, aggregate production and construction material processing applications.
2. What is the application of PEV Series Jaw Crusher?
PEV Series Jaw Crusher is mainly used for primary crushing, reducing large-sized rocks and raw materials into smaller sizes for further processing.
Typical applications include:
3. Why choose PEV Series Jaw Crusher for primary crushing?
PEV Series Jaw Crusher features a strong crushing structure and optimized crushing chamber design, making it suitable for high-capacity primary crushing applications.
Its advantages include:
High crushing capacity
Large feed opening
Stable operation under heavy-duty conditions
Long service life of wear parts
Easy maintenance and adjustment
4. What is the difference between Jaw Crusher and Cone Crusher?
Jaw Crusher and Cone Crusher are commonly used together in crushing plants, but they serve different crushing stages.
Jaw Crusher is mainly used for primary crushing, handling large rocks and reducing feed size.
Cone Crusher is mainly used for secondary and tertiary crushing, producing finer materials with better particle shape.
For complete crushing solutions, Dahongli can provide suitable equipment combinations based on material properties and production requirements.
5. How do I select the right PEV Jaw Crusher model?
The selection of a Jaw Crusher depends on:
Maximum feed size
Required output size
Production capacity
Material hardness
Application conditions
Dahongli offers multiple PEV Jaw Crusher models, from PEV500×750 to large-scale PEV1500×2000, meeting different capacity requirements from small aggregate plants to large mining projects.
6. Is Dahongli a Jaw Crusher manufacturer?
Yes. Dahongli is a professional Jaw Crusher manufacturer specializing in the design and production of high-performance jaw crushing equipment.
With advanced manufacturing capabilities and engineering experience, Dahongli provides:
Customized jaw crusher solutions
Complete technical support
Spare parts supply
Installation and commissioning assistance
Our jaw crushers are used in quarrying, mining and aggregate production projects worldwide.
7. Does Dahongli provide installation and after-sales support?
Yes. Dahongli provides comprehensive technical support throughout the equipment lifecycle.
Our services include:
For overseas projects, Dahongli can provide professional engineering support to ensure stable equipment operation.
8. Can Dahongli provide a complete crushing and screening plant solution?
Yes. Dahongli provides complete crushing and screening plant solutions from equipment selection and process design to installation and commissioning.
Based on customers' raw materials, production capacity and final product requirements, our engineers design customized solutions.
As a professional Jaw Crusher manufacturer, Dahongli not only supplies individual crushing equipment but also provides turnkey crushing plant projects, including plant layout design, equipment manufacturing, installation guidance, commissioning and technical training.
9. What turnkey services does Dahongli provide for crushing plant projects?
Dahongli provides complete turnkey engineering services to help customers build efficient crushing and screening plants.
Our turnkey services include:
Raw material analysis and project consultation
Crushing process design and equipment selection
Complete plant layout and technical drawings
Equipment manufacturing and delivery
Installation and commissioning support
Operator training and after-sales service
From the initial project concept to stable production operation, Dahongli provides professional technical support throughout the entire project lifecycle.
10. Can Dahongli customize a Jaw Crusher according to my project requirements?
Yes. Dahongli provides customized Jaw Crusher solutions according to different project requirements, including:
Whether for a single Jaw Crusher application or a complete aggregate crushing and screening plant, Dahongli can provide suitable equipment configurations and optimized solutions.
