Modular Crushing Station Features

Dahongli Machinery - With more than 30 years of experience in sand and gravel crushing, after years of continuous improvement and optimization of process design based on a complete set of sand and gravel crushing production lines. Dahongli was the first in the industry to propose the concept of modular crushing stations to meet the needs of different customers.

Modular Crushing Station Process

The material is poured from the hopper, pre-screened by the ZSW vibrating feeder, and then evenly fed into the PEV jaw crusher for coarse crushing. After crushing, the material is fed into the PYD multi-cylinder cone crusher through a belt conveyor for fine crushing. The material crushed by the cone crusher is conveyed by a belt conveyor to the new generation TK series horizontal screen for finished product screening, and finished materials of different specifications of 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm are selected. The oversize material is returned to the PYD multi-cylinder cone crusher by the belt conveyor for re-crushing.

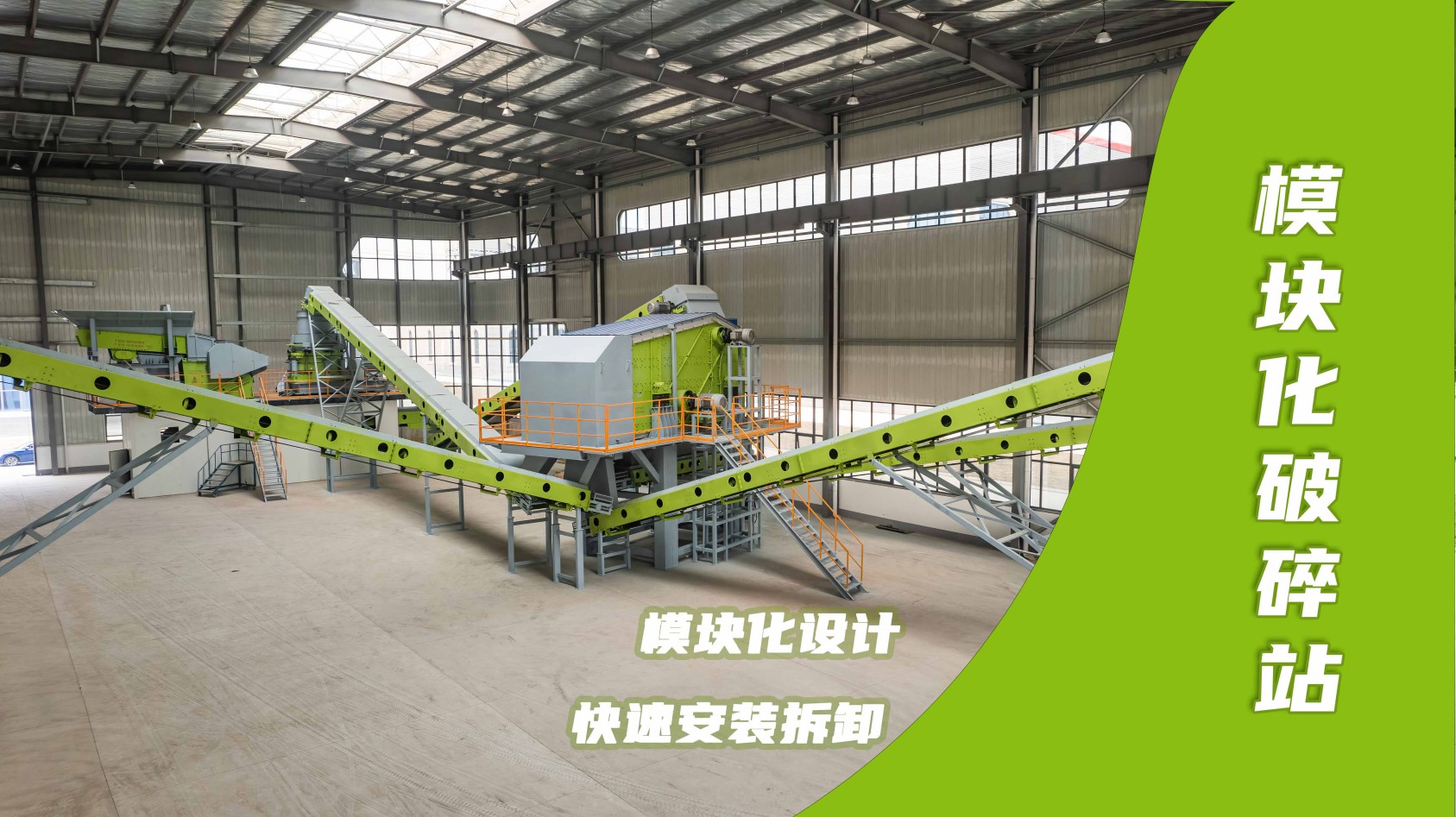

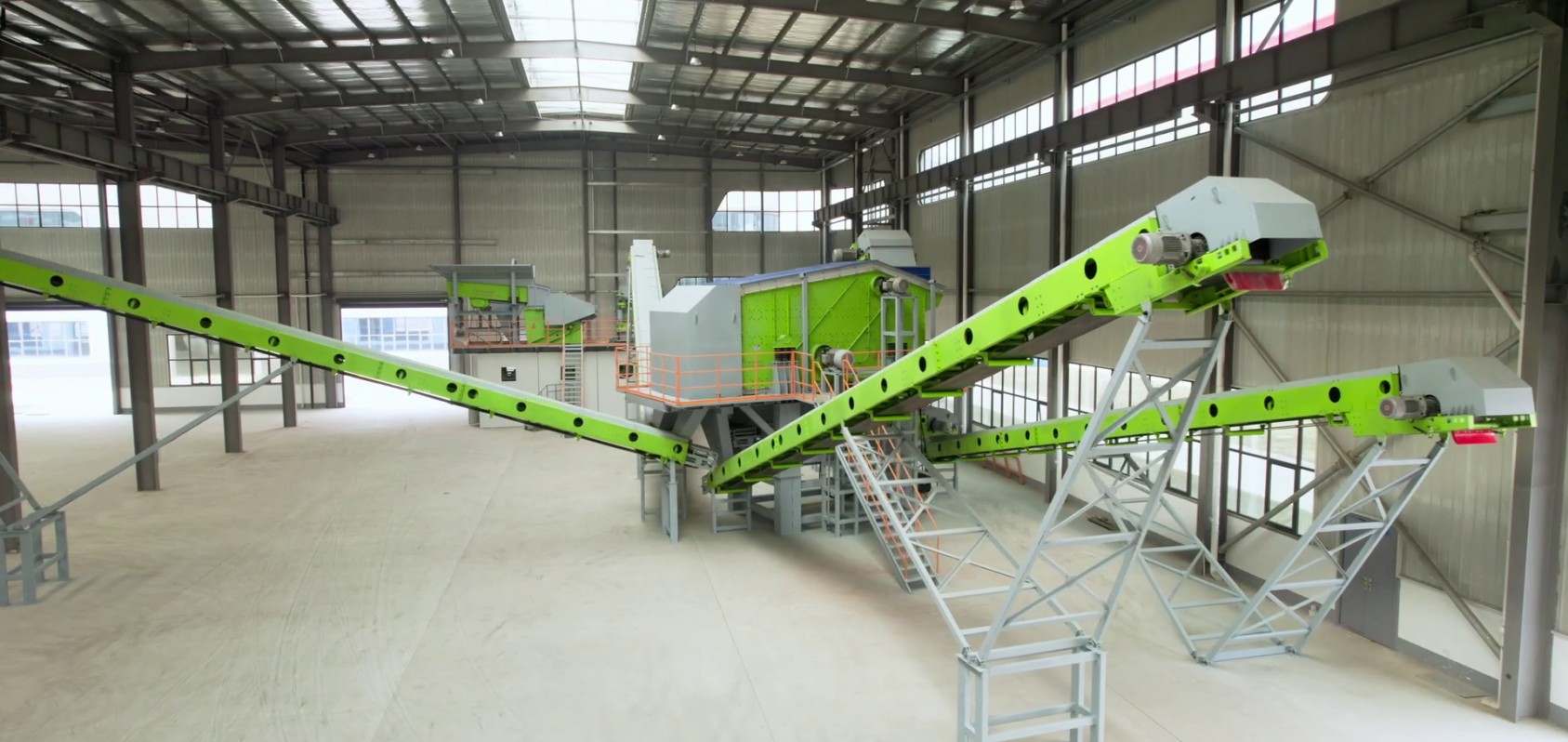

Modular crushing station production line

Equipment introduction:

Dahongli Machinery-With more than 30 years of experience in sand and gravel crushing, after many years, it has continuously improved and optimized the process design based on the complete set of sand and gravel crushing production lines. Dahongli took the lead in proposing the concept of modular crushing station in the industry, aiming to meet the needs of different customers.

Application scope: engineering project sand and gravel processing, mining sand and gravel production, construction solid waste recycled sand and gravel aggregate processing, etc.

Case display:

Use jaw crusher + multi-cylinder cone crusher to ensure production while taking into account the advantages of particle shape, and match it with a horizontal vibrating screen, while taking into account the large processing capacity of the inclined vibrating screen, it improves the screening efficiency.

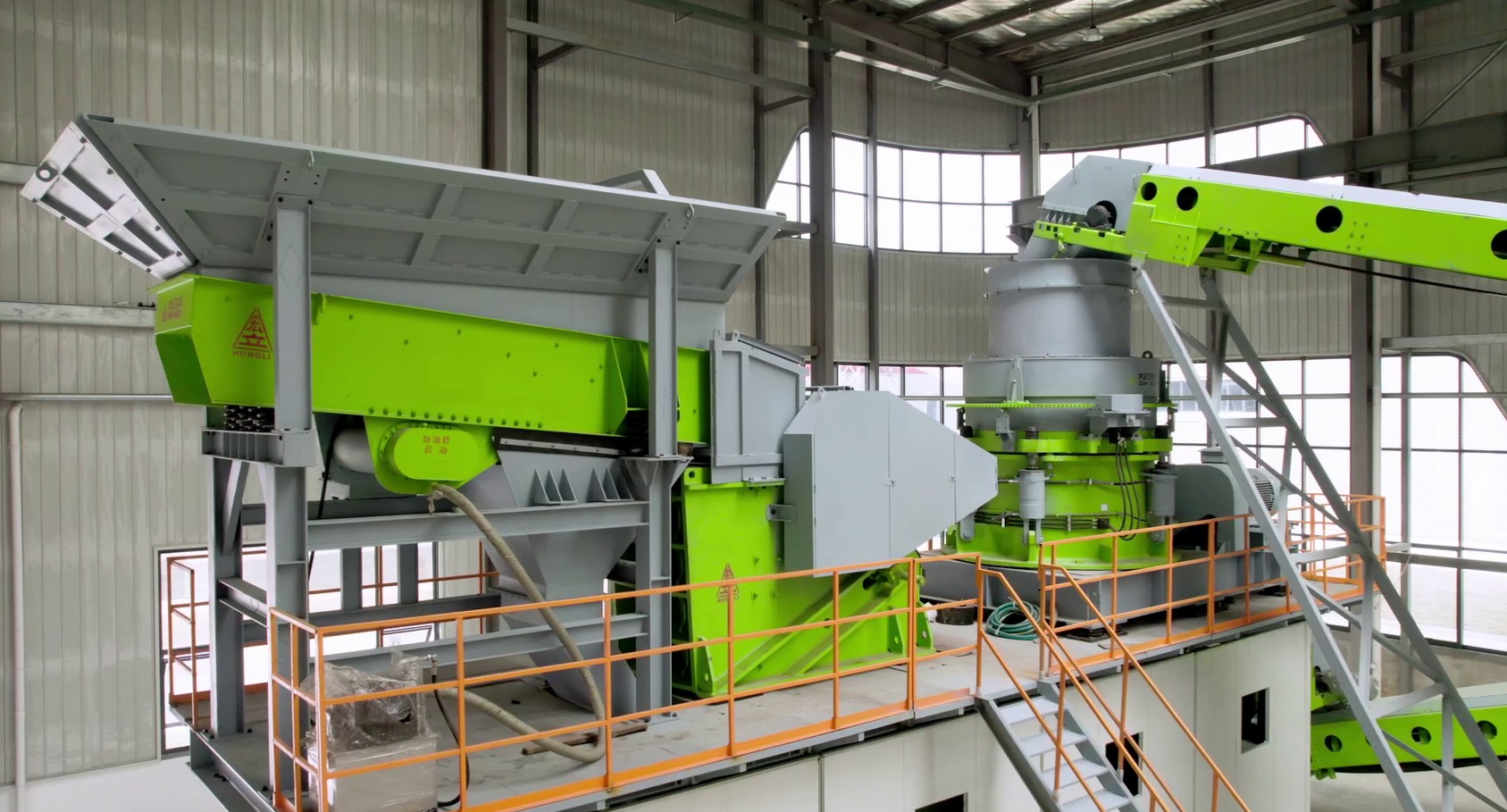

Jaw crusher + cone crusher

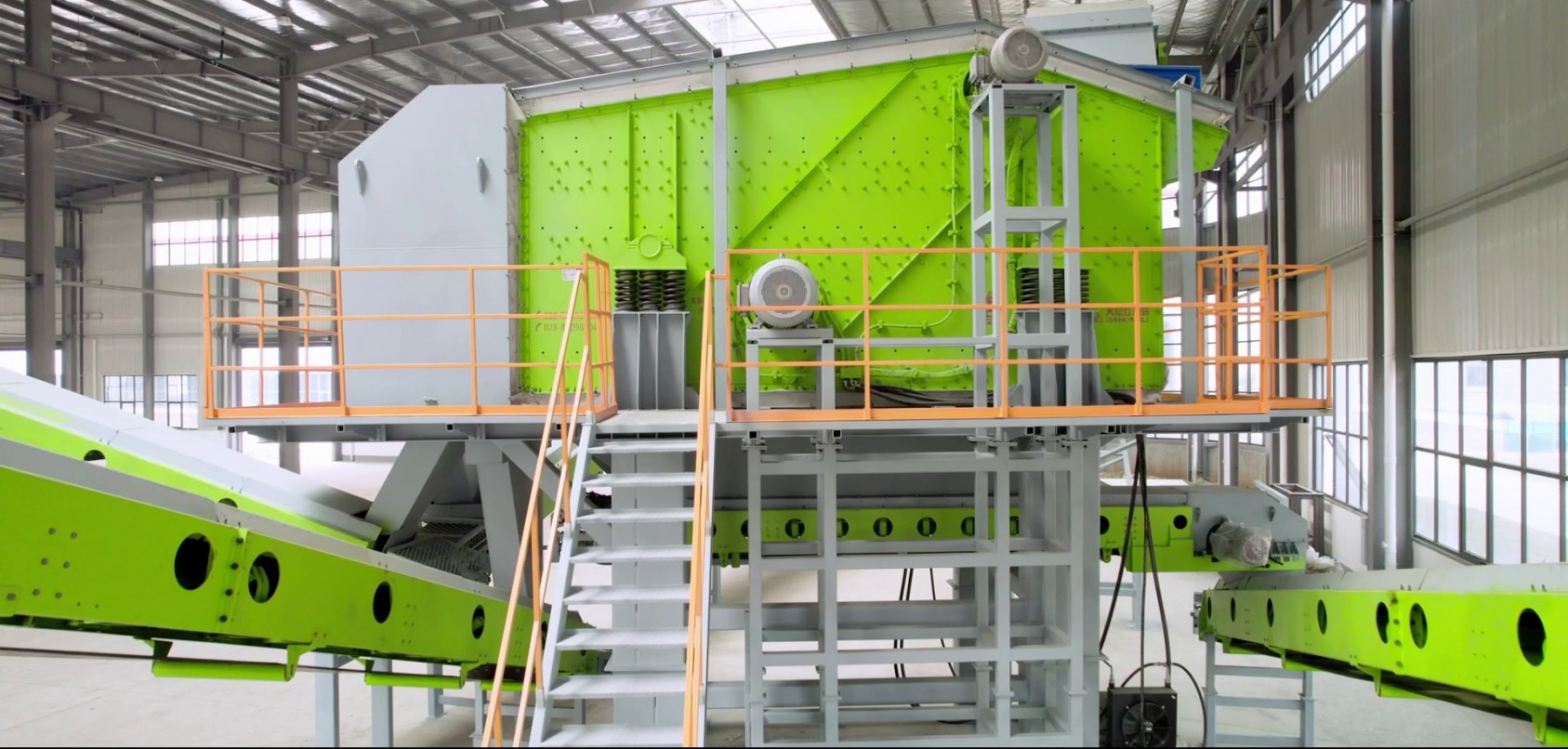

TK series horizontal screen

Process flow:

The material is poured from the hopper, pre-screened by the ZSW vibrating feeder, and then evenly fed into the PEV jaw crusher for coarse crushing. After crushing, the material is fed into the PYD multi-cylinder cone crusher through a belt conveyor for fine crushing. The materials crushed by the cone crusher are conveyed by a belt conveyor to the new generation TK series horizontal screen for finished product screening, and finished materials of different specifications of 0-5mm, 5-10mm, 10-20mm, and 20-31.5mm are selected. The oversize materials are returned to the PYD multi-cylinder cone crusher by the belt conveyor for re-crushing.

Project advantages:

1. Advanced and stable - modular sand and gravel crushing production line, the selected equipment are mature and advanced process equipment, combined with our company's 35 years of industry experience and technical precipitation, through standardized and standardized design to ensure the advancement of the process and the stability of the project.

2. Quick installation - modular sand and gravel crushing production line, the frame adopts all-steel structural parts design, and the foundation only needs to use horizontal foundation reserved embedded parts, which can realize the rapid installation and disassembly of the complete set of equipment.

3. Save investment - the modular sand and gravel crushing production line adopts a simple production process flow, which effectively reduces the capital construction cost and equipment investment cost while meeting the use needs.

4. Save land - through intensive modular design, the complete set of production lines is more compact, effectively reducing the production line footprint.

5. High efficiency and energy saving - The crushing, screening and conveying equipment selected for the modular sand and gravel crushing production line are all designed to save energy and reduce consumption, effectively reducing production energy consumption.

6. Convenient operation - The operation and control system of the modular sand and gravel crushing production line adopts a centralized control method, and at the same time assists the corresponding monitoring equipment, which can effectively reduce the number of operators and save labor costs.

7. Green and environmental protection - The crushing and screening equipment and belt conveyor adopt a fully sealed installation design, which can effectively reduce dust and noise pollution.

8. Strong compatibility - According to different finished product requirements, the modular sand and gravel crushing production line can flexibly add different crushing, shaping, sand making, powder selection and cleaning equipment to adapt to different application scenarios.
