Project case
Yaoan County, under the jurisdiction of Chuxiong Prefecture, Yunnan Province, is a typical plateau basin with high mountains on all sides and a wide plain in the middle. It is known as the "granary of central Yunnan".
The Yaoan Hongan Commercial 800 tons per hour EPC project undertaken by Dahongli is located here. The project started construction in January this year and was officially put into production in May. The factory building is currently being added. The finished products are mainly used for the water diversion project in central Yunnan and the Kunchu Expressway.
1. Project Overview
Raw Material Type: Kaishan Stone
Output: 800t/h
Occupied Area: 16 acres
Production Process: 3-stage crushing and 1-stage shaping
Product Specifications: 0-5.5mm, 10-20mm, 20-31.5mm

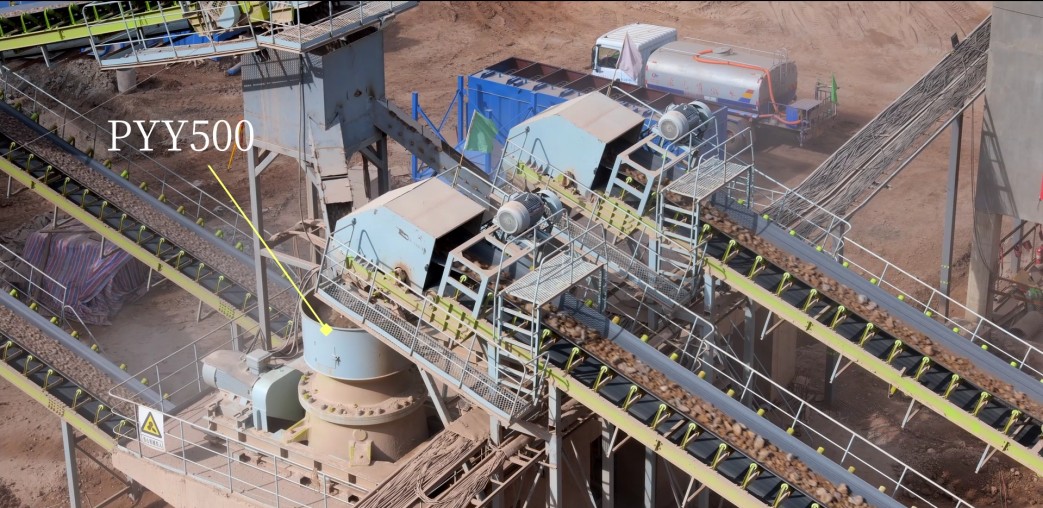

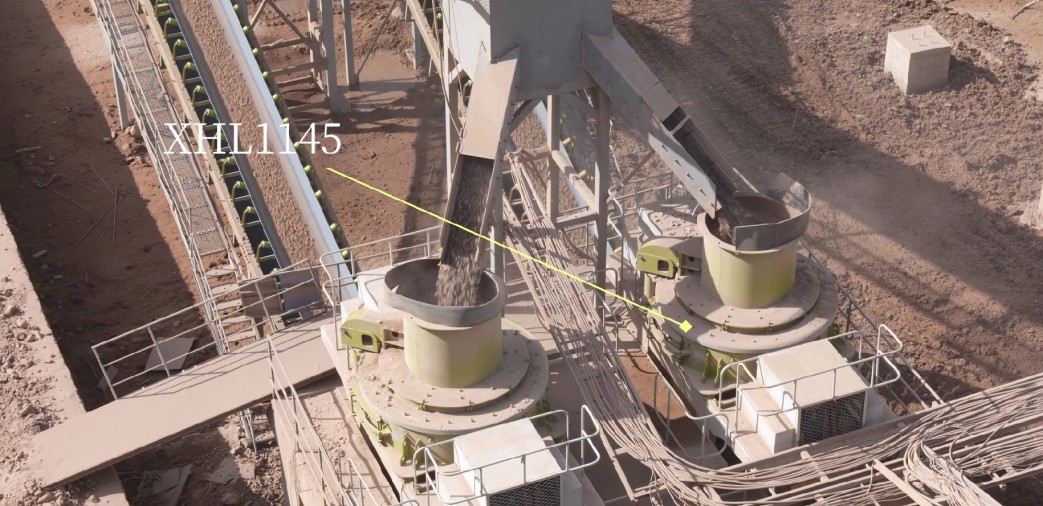

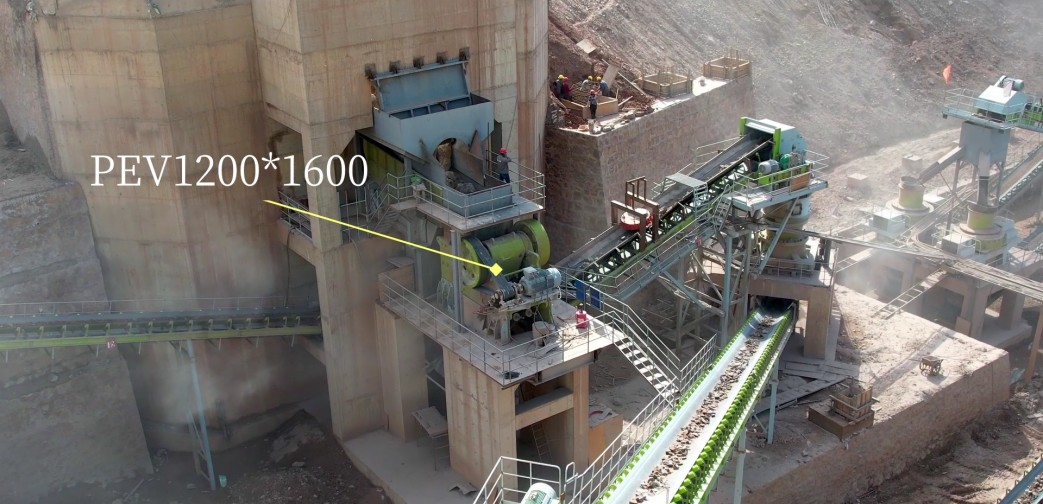

The project is equipped with Dahongli PEV1200*1600B jaw crusher, PYY500C single-cylinder hydraulic cone crusher, PYYZ500C single-cylinder hydraulic cone crusher, XHL1145A impact crusher, ZSW1860A feeder, ZZG1320 feeder, 3YK2570IV sorting screen and other complete crushing and screening equipment.
2. Project Gallery
After conducting a field survey on the site, Dahongli carefully designed a targeted project plan for the customer based on customer needs and on-site conditions. In view of the high production efficiency and low wear of hard sandstone, the "medium crushing single cylinder cone + fine crushing single cylinder cone" is adopted, which not only reduces the fine crushing pressure and screening operation pressure, but also obtains finished materials with good particle shape and reasonable grading.

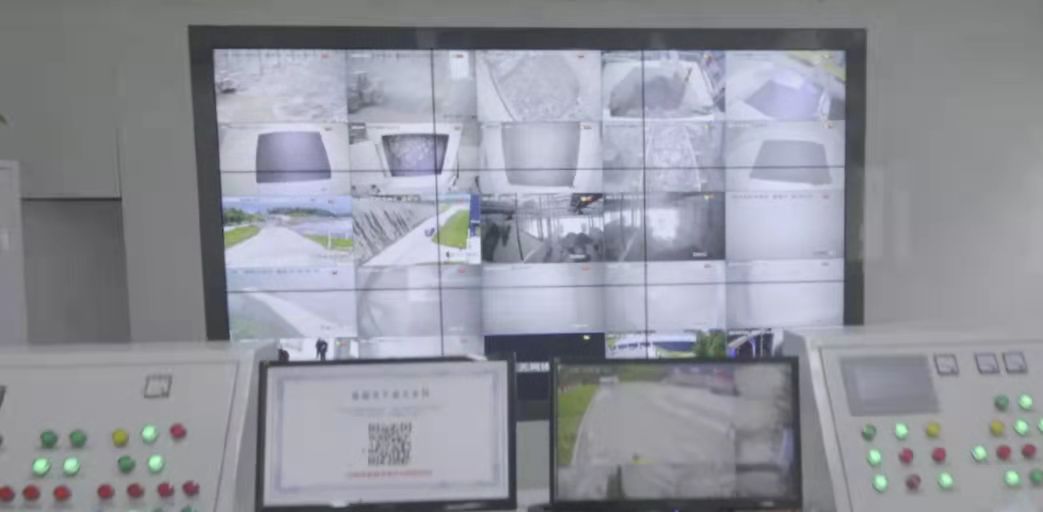

In addition, the project is equipped with an operating table and a monitoring system for intelligent management and control, which not only saves time and effort, but also monitors all aspects of the project very accurately, ensuring the safe and stable operation of the project.
Since its commissioning, the project has been running stably, the equipment has been in good use, and the customer's production target has been achieved.
