Project case

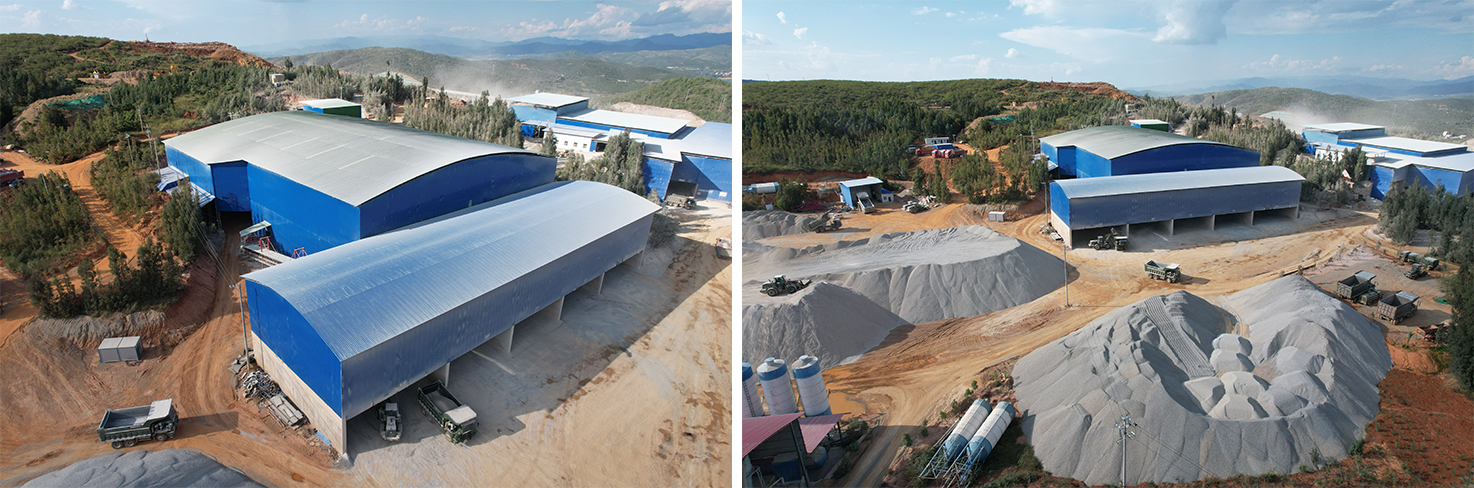

Xiangyun County, under the jurisdiction of Dali Prefecture, Yunnan Province, is the transportation throat of western Yunnan - the only way to the eight prefectures in western Yunnan, and the eastern gate of Dali Prefecture. Dahongli has built two 1200 tons per hour sand and gravel aggregate projects here: Xiangyun Sancai Industry and Trade 1200 tons per hour limestone project and Chuxiong Xinyi Building Materials 1200 tons per hour limestone project. Both projects cover an area of 10 acres and both supply materials for the Kunchuda Expressway double line and the Dianzhong water diversion project.
Chuxiong Xinyi Building Materials
Raw material type: limestone
Occupancy area: 10 acres
Start-up time: September 2021
Product specifications: 0-5mm, 5-10mm, 10-20mm, 20-31.5mm
Equipment configuration: PEV1200*1600B, G90*60, PF2124, ZSW1860A, 2YK3075II, 2YK3675II, 3YK3675II, TDY1800
The project adopts the combination of "jaw crusher + impact crusher + high-pressure roller mill", which greatly improves the grinding efficiency and productivity, and also makes the finished sand particle size distribution uniform, the finished product has good particle shape and strong fluidity. In addition, the project is equipped with a centralized control system and monitoring system to reduce human resource investment and realize intelligent production.
